Rline BCS Implant

Product Information

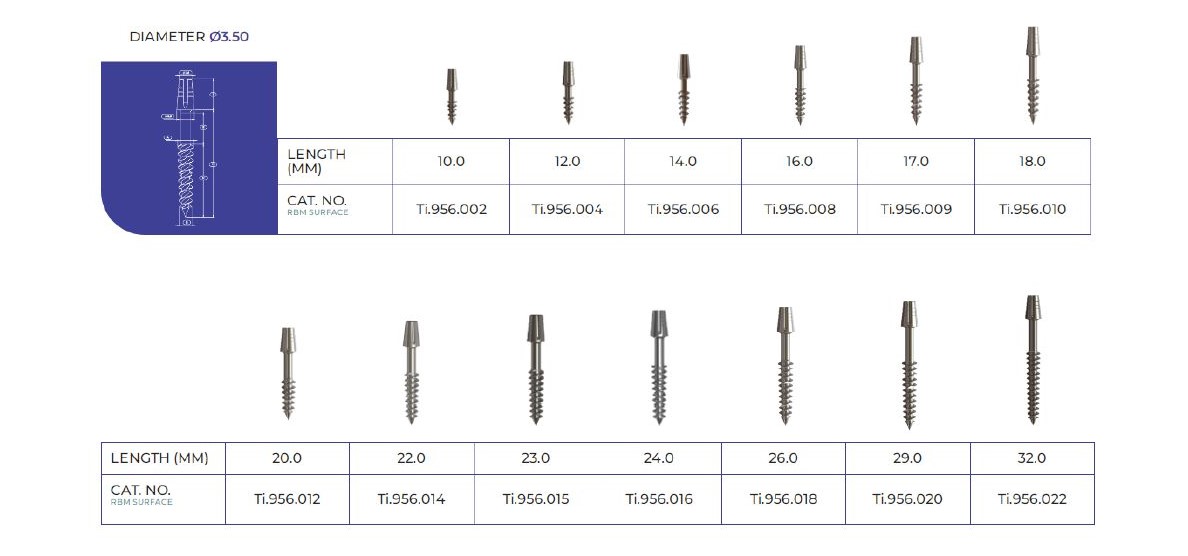

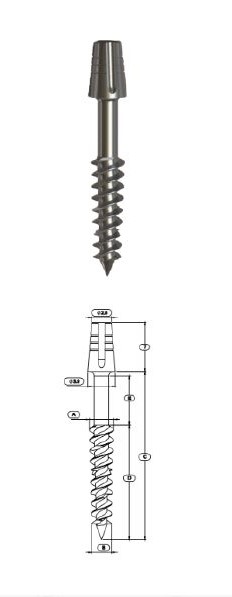

BCS Screw - R- Line Sharp Tip 3.5mm
A	B	C	D	E
3.5 mm	2.85 mm	10.0 mm 12.0 mm 14.0 mm 16.0 mm 17.0 mm 20.0 mm 22.0 mm 23.0 mm 24.0 mm 26.0 mm 29.0 mm 32.0 mm	6.35 mm 8.35 mm 10.35 mm 10.35 mm 11.35 mm 12.35 mm 14.35 mm 15.35 mm 16.35 mm 18.35 mm 19.35 mm 22.35 mm	3.0 mm 3.0 mm 3.0 mm 5.0 mm 5.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm 9.0 mm 9.0 mm

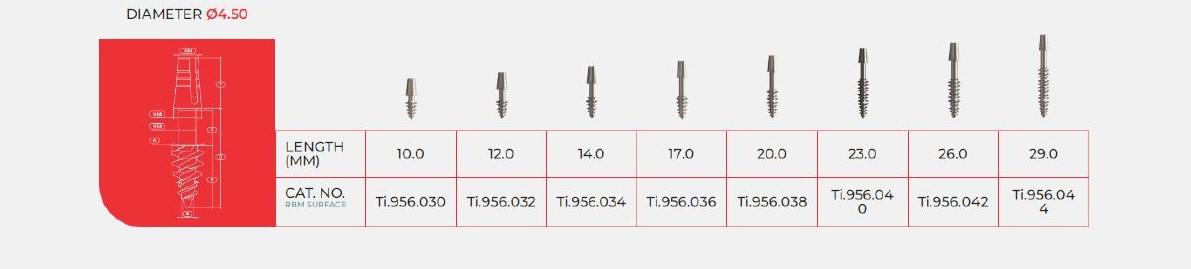

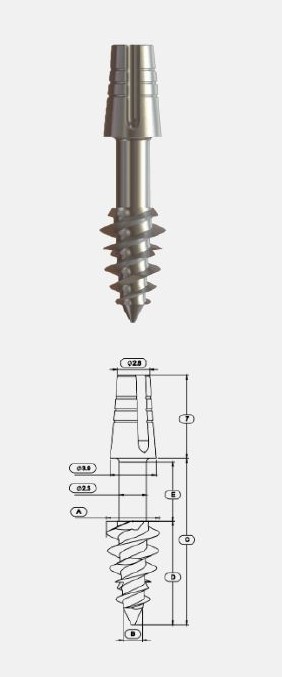

BCS Screw - R- Line Sharp Tip 4.5mm
A	B	C	D	E
4.5 mm	1.6 mm	10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 36.0 mm 40.0 mm 42.0 mm 47.0 mm 50.0 mm 55.0 mm 57.0 mm 60.0 mm	7.7 mm 7.7 mm 8.7 mm 9.7 mm 12.7 mm 15.7 mm 18.7 mm 21.7 mm 28.7 mm 32.7 mm 34.7 mm 39.7 mm 42.7 mm 47.7 mm 49.7 mm 52.7 mm	2.0 mm 4.0 mm 5.0 mm 7.0 mm

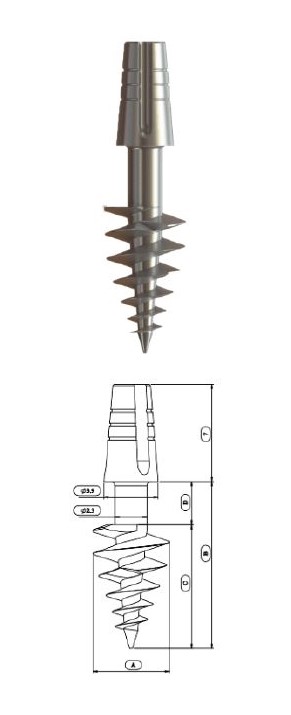

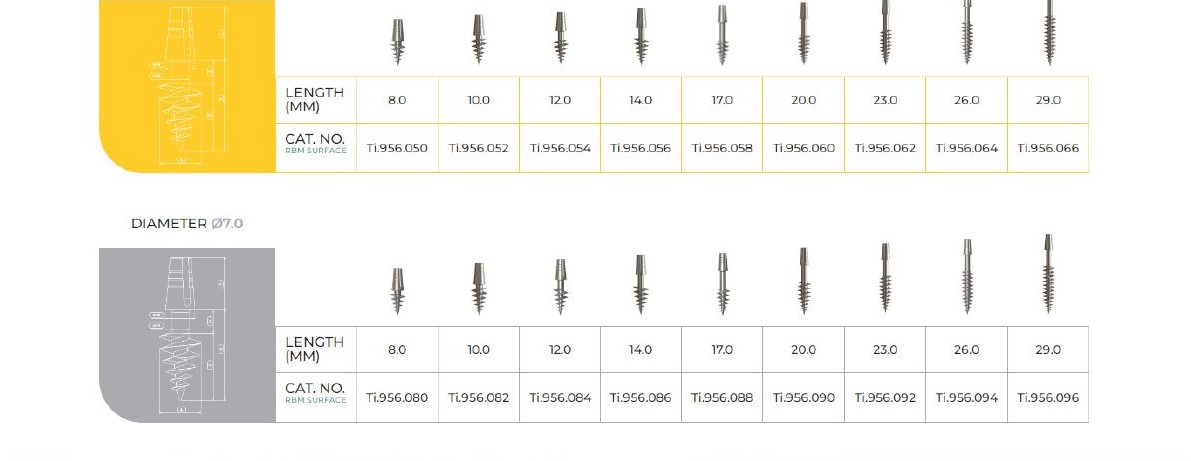

BCS Screw - R- Line Sharp Tip 5.5mm & 7.0mm
A	B	C	D
5.5 mm	8.0 mm 10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm	7.0 mm 8.0 mm 9.0 mm 9.0 mm 10.0 mm 13.0 mm 16.0 mm 19.0 mm 22.0 mm	1.0 mm 2.0 mm 3.0 mm 5.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm
7.0 mm	8.0 mm 10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm	7.0 mm 8.0 mm 9.0 mm 9.0 mm 10.0 mm 13.0 mm 16.0 mm 19.0 mm 22.0 mm	1.0 mm 2.0 mm 3.0 mm 5.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm 7.0 mm
