DSI Implant

This design became the standard for the period, and once it became apparent the external hex could also provide anti-rotational capabilities, the era of the single implant restoration was born.

Product Information

Our Internal Hex connection implant system is designed and developed with simplicity, quality, and ease-of-use in mind. Our portfolio covers all clinical cases, from the simplest to the most complex so that each physician can find the precise and most convenient implant to work with.

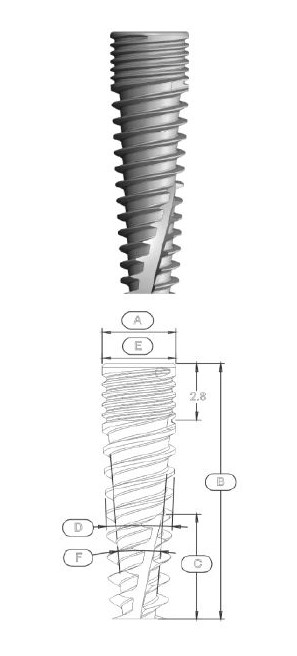

DSI Implant

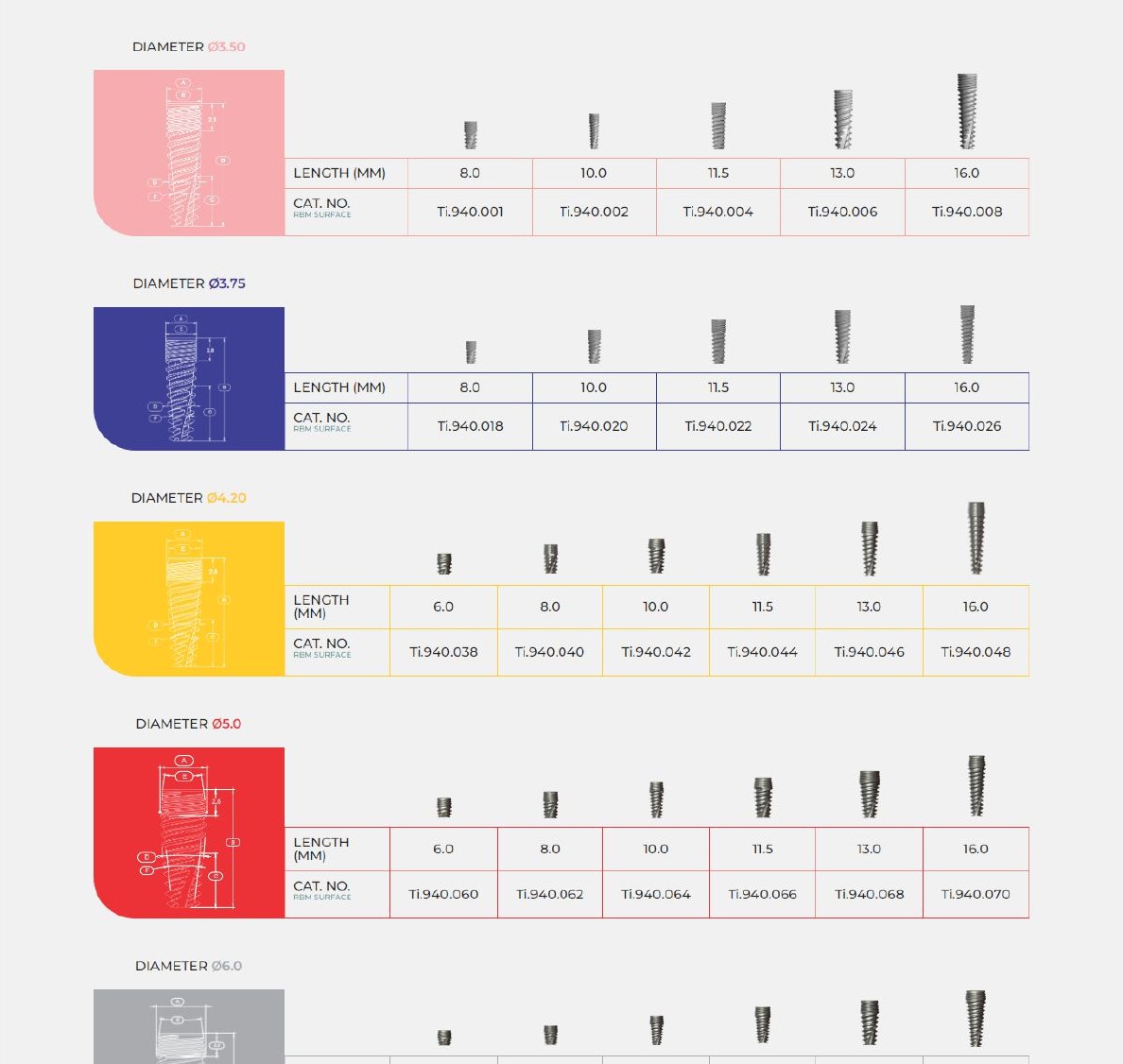

A B C D E F
03.5 mm
8.0 mm
10.0 mm
11.5 mm
13.0 mm
16.0 mm
4.0 mm
4.5 mm
5.0 mm
6.0 mm
7.0 mm
 4.3° 0°
12.6°
11°
9.8°
9°
7.9°
03.75 mm
8.0 mm
10.0 mm
11.5 mm
13.0 mm
16.0 mm
4.0 mm
4.5 mm
5.0 mm
6.0 mm
7.0 mm
 4.3° 0°
12.6°
11°
9.8°
9°
7.9°
04.2 mm
6.0 mm
8.0 mm
10.0 mm
11.5 mm
13.0 mm
16.0 mm
3.0 mm
4.0 mm
4.5 mm
5.0 mm
6.0 mm
7.0 mm
 8° 10°
20.9°
16.2°
14.5°
13.3°
12.5°
11.5°
05.0 mm
6.0 mm
8.0 mm
10.0 mm
11.5 mm
13.0 mm
16.0 mm
3.0 mm
4.0 mm
4.5 mm
5.0 mm
6.0 mm
7.0 mm
 8° 10°
20.9°
16.2°
14.5°
13.3°
12.5°
11.5°
06.0 mm
6.0 mm
8.0 mm
10.0 mm
11.5 mm
13.0 mm
16.0 mm
3.0 mm
4.0 mm
4.5 mm
5.0 mm
6.0 mm
7.0 mm
 12° 15°
24.7°
20.16°
18°
17.5°
16.5°
15.5°
