MU - BCS

Product Information

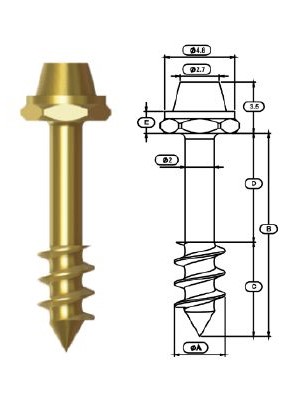

MU - BCS - Dia 3.5mm (External Hex Height 1.5mm)
A	B	C	D	E
3.5 mm	10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 32.0 mm	6.5 mm 9.5 mm	3.5 mm 5.5 mm 7.5 mm 10.5 mm 10.5 mm 13.5 mm 16.5 mm 19.5 mm 22.5 mm	1.5 mm

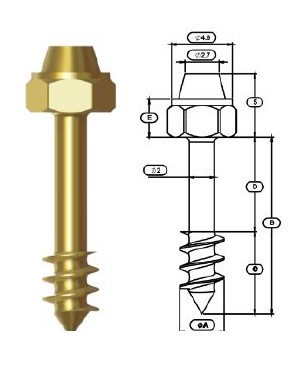

MU - BCS - Dia 3.5mm (External Hex Height 3.0mm)
A	B	C	D	E
3.5 mm	10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 32.0 mm	6.5 mm 9.5 mm	3.5 mm 5.5 mm 7.5 mm 10.5 mm 10.5 mm 13.5 mm 16.5 mm 19.5 mm 22.5 mm	3.0 mm

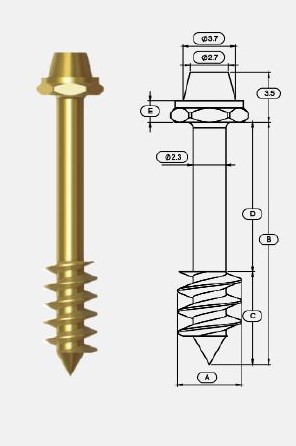

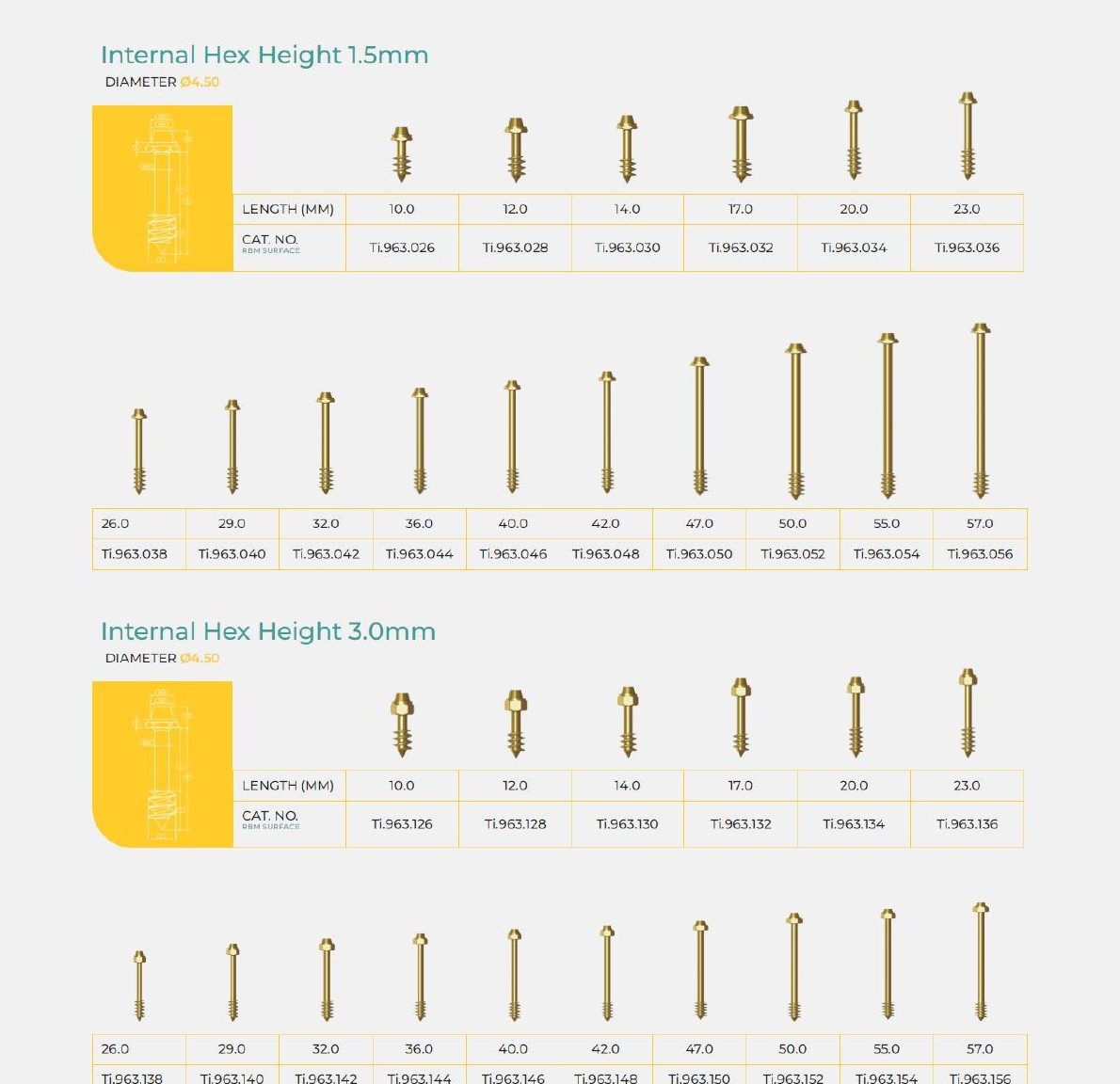

MU - BCS - Dia 4.5mm (External Hex Height 1.5mm)
A	B	C	D	E
4.5 mm	10.0 mm 12.0 mm 14.0 mm 17.0 mm 20.0 mm 23.0 mm 26.0 mm 29.0 mm 32.0 mm 36.0 mm 40.0 mm 42.0 mm 47.0 mm 50.0 mm 55.0 mm 57.0 mm	6.5 mm 9.5 mm	3.5 mm 5.5 mm 7.5 mm 10.5 mm 10.5 mm 13.5 mm 16.5 mm 19.5 mm 22.5 mm 26.5 mm 30.5 mm 32.5 mm 37.5 mm 40.5 mm 45.5 mm 47.5 mm	1.5 mm
