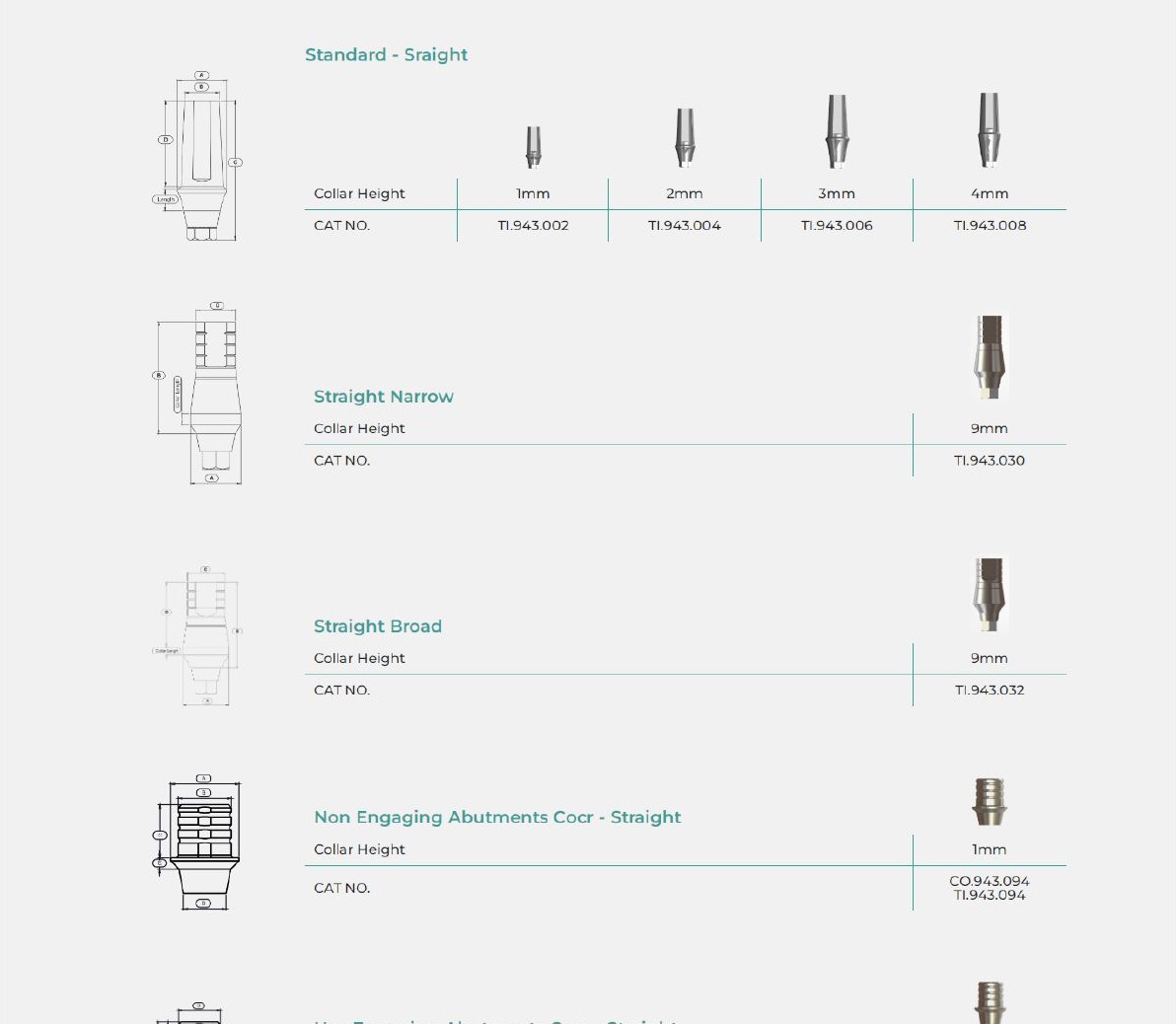

| Abutment For Conical Implant CSI Standard - Straight | ||||
|---|---|---|---|---|
| A | B | Length | C | D |
| 4.6 mm | 3.2 mm |
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
12.0 mm
13.0 mm
14.0 mm
15.0 mm
|
8.0 mm |

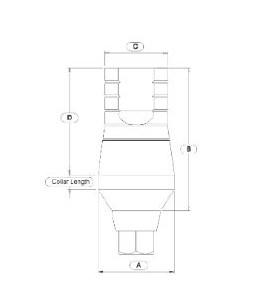

| Abutment For Conical Implant CSI - Collar Narrow | |||
|---|---|---|---|
| A | Collar Length | B | C |
| 4.5 mm |
0.0 mm
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
9.0 mm
10.0 mm
11.0 mm
12.0 mm
13.0 mm
|
3.5 mm |
| Abutment For Conical Implant CSI - Collar Broad | ||||
|---|---|---|---|---|
| A | Collar Length | B | C | D |
| 5.3 mm |
0.0 mm
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
9.0 mm
10.0 mm
11.0 mm
12.0 mm
13.0 mm
|
4.4 mm | 7.5 mm |
| Abutment For Conical Screw - COCr (Engaged) | ||||
|---|---|---|---|---|
| A | B | C | D | E |
| 4.5 mm | 7.2 mm | 3.5 mm | 3.5 mm | 0.75 mm |

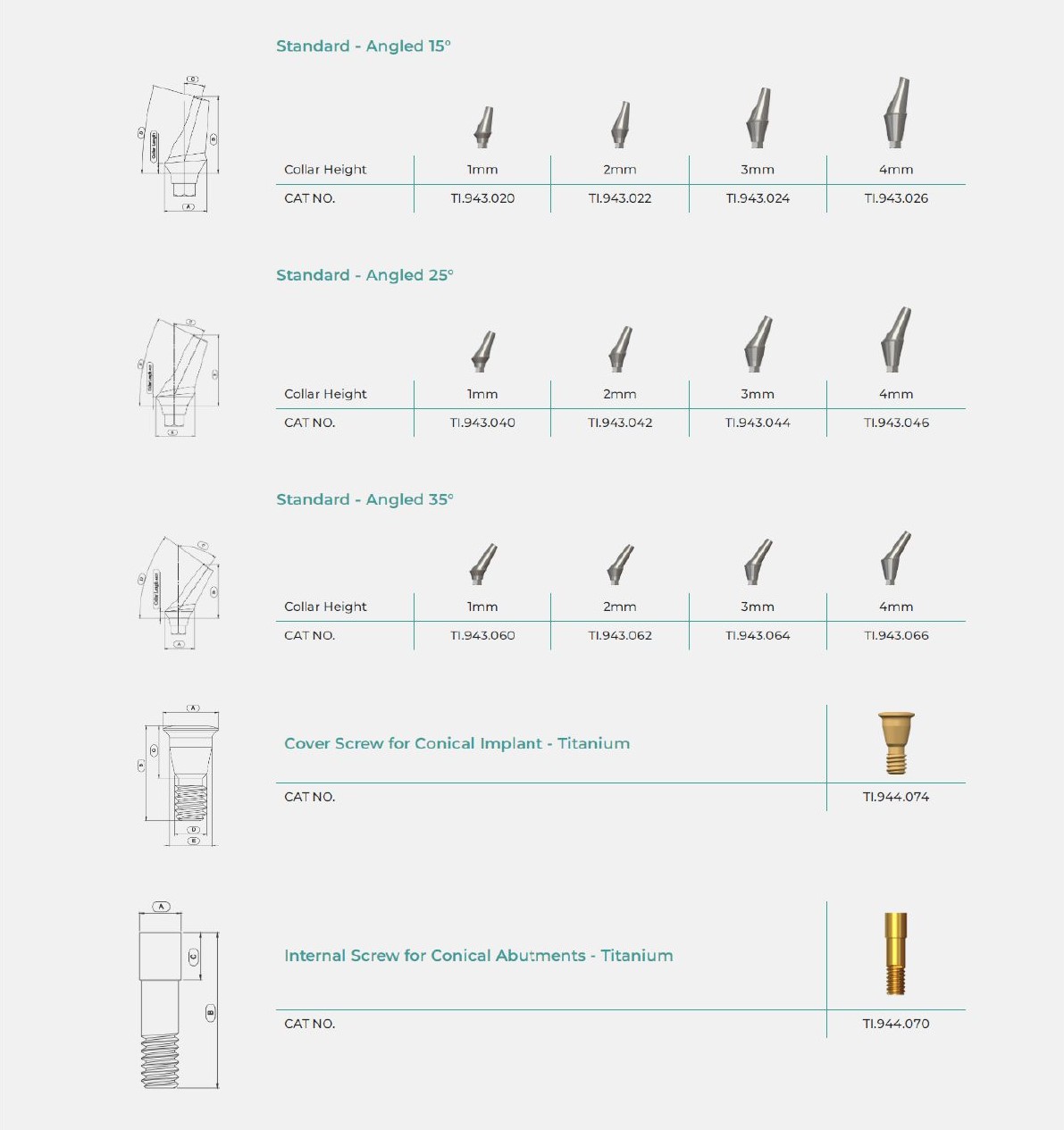

| Abutment For Conical Implant- Angled 15° | ||||
|---|---|---|---|---|
| A | B | Collar Length | C | D |
| 5.0 mm |
9.0 mm
10.0 mm
11.0 mm
12.0 mm
|
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
15° | 15° |
| Abutment For Conical Implant- Angled 25° | ||||
|---|---|---|---|---|
| A | B | Collar Length | C | D |
| 5.0 mm |
9.0 mm
10.0 mm
11.0 mm
12.0 mm
|
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
25° | 25° |
| Abutment For Conical Implant- Angled 35° | ||||
|---|---|---|---|---|
| A | B | Collar Length | C | D |
| 5.0 mm |
9.0 mm
10.0 mm
11.0 mm
12.0 mm
|
1.0 mm
2.0 mm
3.0 mm
4.0 mm
|
35° | 35° |
| Cover Screw For Conical Implant | ||||
|---|---|---|---|---|
| A | B | C | D | E |
| 3.5 mm | 6.0 mm | 3.3 mm | 2.0 mm | 2.7 mm |
| Internal Screw For Conical Abutment | ||||
|---|---|---|---|---|
| A | B | C | ||
| 2.25 mm | 8.3 mm | 2.5 mm | ||
